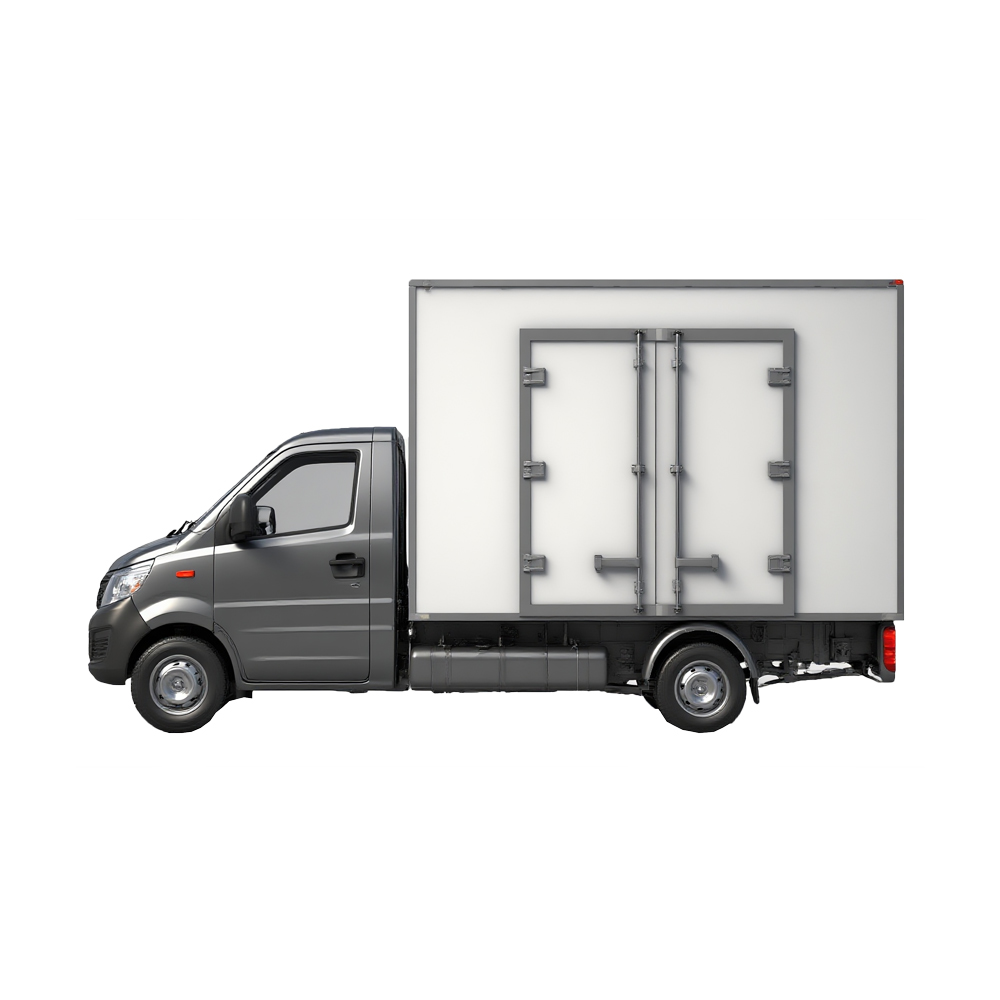

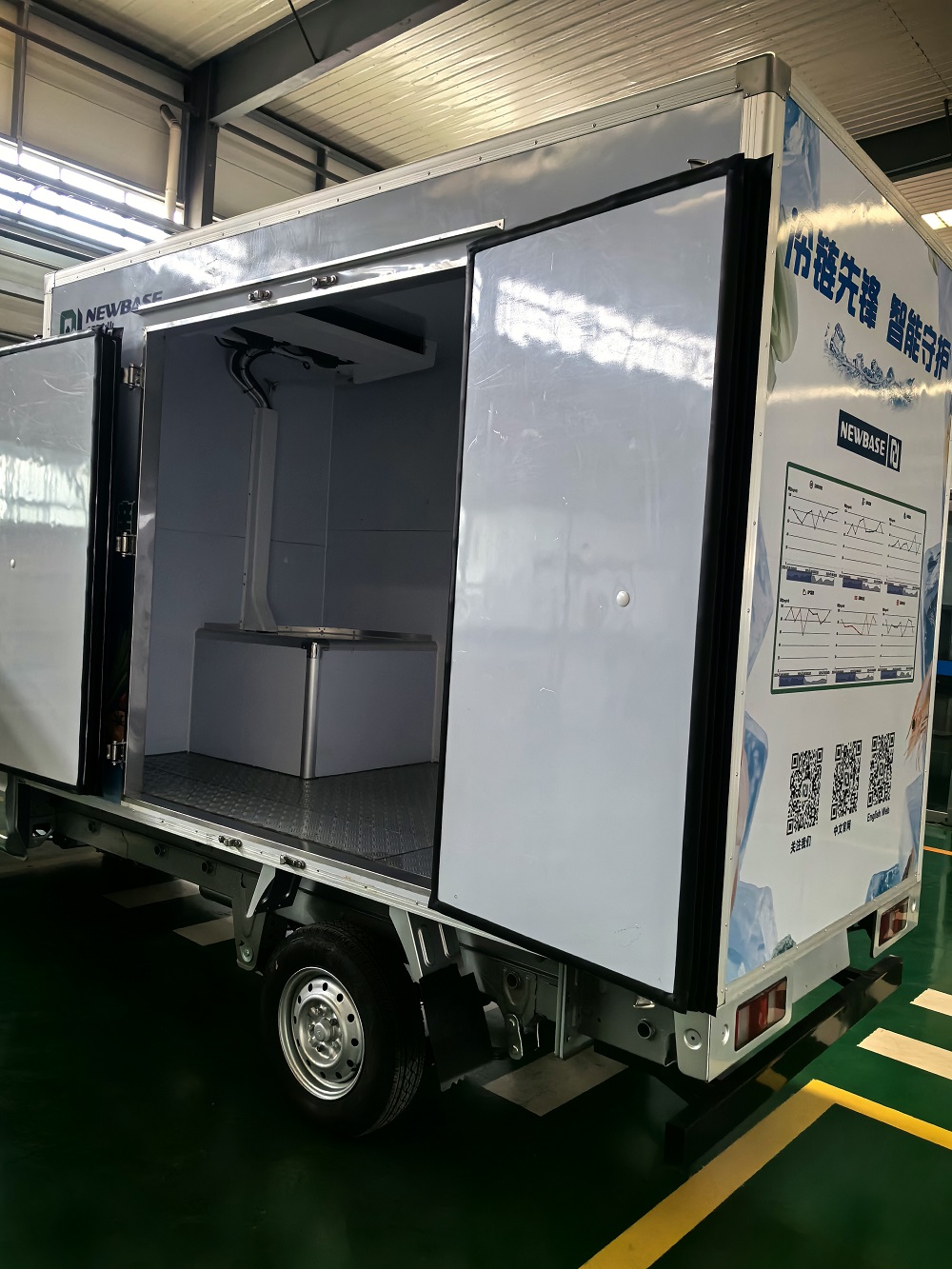

Truk berpendingin listrik kompak untuk pengiriman perkotaan UE
dapatkan harga terbaru| Jenis pembayaran: | T/T |
| Inkoterm: | FOB,CFR,CIF,EXW,FCA |
| Min. Memesan: | 1 |
| Transportasi: | Land,Ocean,Air |
| Pelabuhan: | ningbo,shanghai,guangzhou |
| Jenis pembayaran: | T/T |
| Inkoterm: | FOB,CFR,CIF,EXW,FCA |
| Min. Memesan: | 1 |
| Transportasi: | Land,Ocean,Air |
| Pelabuhan: | ningbo,shanghai,guangzhou |
Model No: NBESRA300 - 000
Merek: basis baru
Jenis: mobil van
Bahan Bakar: Listrik
Asal: Cina
Applicable Compartment Volume: 7 - 10m³
Minimum Compartment Temperature: -20℃
Refrigerating Capacity: 3200W at 0℃/30℃ 1850W at -20℃/30℃
High Voltage: DC250V - DC450V (Low Voltage Platform) DC380V - DC750V (High Voltage Platform)
Power: 2500W at 0℃/+30℃ 1300W at -20℃/+30℃
Driving Mode: Pure Electric
Control Voltage: DC12V (9 ~ 16V) DC24V (16 ~ 32V)
Low - Voltage Power Supply: DC - DC Self - supply / or Connect to the Whole Vehicle
Standby Power Supply: AC220V/380V (Optional)
Kompresor: Guangzhou Guangyu Gy27.e72 - 601c (Inverter)
Pendingin: R404a
Biaya Refrigeran: 1.2kg
Metode Pencairan: Pencairan gas panas otomatis
Metode Pemanas: Pemanasan gas panas / PTC (opsional)
Metode Kontrol: Dapat komunikasi
Perakitan Kondensor: Dimensi (l*w*h) (mm): 740*730*468, berat (kg): 75
Kipas Kondensor: Kuantitas (PC): 1, volume udara total (m³/h): 1800
Perakitan Evaporator: Dimensi (l*w*h) (mm): 1038*570*140, berat (kg): 22
Penggemar Evaporator: Kuantitas (PC): 2, total volume udara (m³/jam): 2000
| Tipe paket | : | Karton dan kotak kayu |
| Contoh pada gamba | : |
|
The file is encrypted. Please fill in the following information to continue accessing it


| Market | Application | Advantages | Case Example |
| Germany, France | Customizable Electric Cold Chain for EU Pharma | Maintains -18°C ±0.5°C stability; green ATP-compliant cold chain solution; GSP/GDP-certified | Emergency COVID-19 vaccine deliveries to rural German medical centers |
| UK, Netherlands | Compact Electric Refrigerated Truck for Urban Delivery | Reduces spoilage by 30%+; smart IoT route optimization; fits narrow urban streets | Fresh produce delivery from regional warehouses to London’s community grocery hubs |
| France, Italy | Foodservice Supply Chain | Multi-temperature co-loading; boosts load efficiency; meets just-in-time delivery | Delivering frozen seafood to Parisian hot pot chains and dairy products to Milanese coffee shops |
| Europe-Wide | Special Scenario Logistics | Modular scalability; long-range capability; climate resilience | EU trade shows, rural supply missions (e.g., low-emission modular cold chain for ASEAN export scalability) |
| Factor | Newbase Modular Solution | Traditional Refrigerated Trucks |
| Size & Agility | Compact, optimized for last-mile delivery | Large, low flexibility |
| Temperature Control | -20°C to +25°C, ±0.5°C precision | Narrow range (e.g., -15°C to +5°C), ±1-2°C accuracy |
| Sustainability | Zero-emission new energy + solar power | Fuel-driven, high carbon footprint |
| Smart Tech | Real-time IoT monitoring, full-chain traceability | Basic/no smart features, delayed data feedback |
| Protection | IP54 dustproof/waterproof | No defined protection rating |
