| Jenis pembayaran: | T/T |
| Inkoterm: | FOB,CFR,CIF,EXW,FCA |
| Min. Memesan: | 1 |
| Transportasi: | Land,Ocean,Air |
| Pelabuhan: | shanghai,qingdao,ningbo |
Naungan:

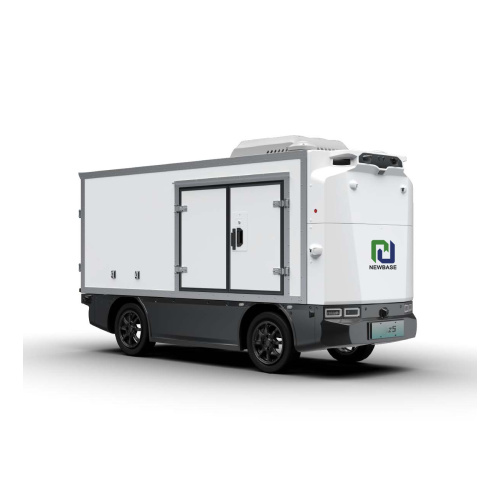

Model No: Z5 refrigerated truck
Merek: basis baru
Tempat Asal: Cina
Overall Dimensions (mm): 3700*1360*2200
Minimum Ground Clearance (mm): 160
Maximum Wading Depth (mm): 300
Minimum Turning Radius (m): 4.5
Maximum Climbing Gradient: 20% (11.3°)
Operating Speed (km/h): 40
Operating Temperature (℃): -30~60
Waterproof Grade: IP55
Maximum Range At No Load (km): 180
Urban Comprehensive Range (km): 130
Payload (kg): 600
Cargo Compartment Volume (m³): 5.3
Body Color: Star Sea White/Glacier Blue
Lock Type: Vehicle-grade Smart Electric Lock
Power Battery Type: Lithium Iron Phosphate
Battery Capacity (kWh): 28.3
Charging Time (30%-80%): Standard: 6h Optional: 3.4h
Peak Power Of Refrigeration Unit (W): 1800
Kisaran Suhu Pendinginan (℃): -20~12
Metode Pengendalian Unit Pendingin: Kontrol APLIKASI
Charger: ① Portable onboard charger 16A; ② 7kW international AC wall-mounted portable or 32A car portable charger
Moq: 1
| Tipe paket | : | Kotak karton dan peti kayu |
| Contoh pada gamba | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| B2B Buyer Type | Core Pain Points | Our Solution | Created Value |
| Fresh Produce/Grocery Retailers |
High food waste from temperature fluctuations
costly 24/7 manual delivery
inefficient last-mile operations
|
±2°C precision temperature control
24/7 unmanned operation; multi-temperature zone design
PIEK-compliant noise reduction (Europe)
|
50% reduction in food waste
60% lower monthly operational costs
2x increase in daily delivery efficiency
|
| Pharmaceutical & Healthcare Companies |
Strict GSP/FDA compliance for temperature-sensitive meds
high risk of manual errors
need for end-to-end temperature tracking
|
Real-time temperature monitoring & data logging
L4 autonomous safety redundancy
-20°C to 8°C pharmaceutical-grade cooling
|
100% GSP/FDA compliance
0.5% transport loss rate (down from 3% industry average); seamless temperature traceability for audits
|
| Cold Chain Logistics Providers |
Rising fuel & labor costs
FMCSA/EU pressure for zero-emission fleets
poor extreme weather adaptability
|
180km empty range/130km full-load range (1000kg)
FMCSA/EU-approved L4 autonomy
-30°C to 60°C extreme temperature resistance
|
70% lower energy costs
30% lower failure rate than industry benchmarks
50% higher efficiency in North American snowstorms and European heatwaves
|
| Basic Performance | Detailed Specifications | Regional Adaptation Advantages (NA/Europe) |
| Power & Range |
LiFePO₄ Battery: 18.4kWh/28.3kWh options
35-min fast charge (30%-80%)
180km empty range/130km full-load range (1000kg)
100km range (-20°C cooling)
|
Meets North America’s "long-range autonomous reefer truck" and Europe’s "energieeffiziente autonome Kühlfahrzeuge" demand
35-min fast charge fits 24/7 intensive delivery schedules
zero-emission design qualifies for EU/US green incentives
|
| Payload & Cargo Space |
1000kg max payload (matches "1000kg payload self-driving van" search demand)
5.5m³ standard cargo volume (6.5m³ 2026 upgrade)
dual-temperature zone management
|
1000kg payload fits grocery/pharmaceutical batch delivery needs
6.5m³ upgrade improves space utilization by 15% for European urban logistics
|
| Temperature Control |
-20°C to 12°C wide-range cooling (±2°C precision)
electric compressor + evaporator system; polyurethane insulation
|
±2°C precision meets FDA pharmaceutical storage standards
dual zones support mixed fresh/pharmaceutical loads (EU multi-category transport demand)
dynamic power adjustment reduces cooling energy consumption by 20%
|
| Maximum Speed & Safety |
45km/h
360° perception system (2 semi-solid-state LiDARs + 7 cameras + 12 ultrasonic radars)
300m max detection range
|
45km/h optimizes urban last-mile efficiency
300m long-distance perception ensures safety in European narrow streets and North American mixed traffic
FMCSA-compliant safety features for US roads
|
| Service Item | Detailed Commitment |
| Warranty Period | 3-year/150,000km warranty for the whole vehicle; 5-year warranty for the LiFePO₄ battery and refrigeration system |
| Maintenance Network | 2000+ authorized service centers (via Tmall Car Care partnership) across North America and Europe; 7×24-hour on-site support |
| Emergency Response | 4-hour emergency repair response in major cities (e.g., New York, Los Angeles, Berlin, Paris); remote diagnostic support for minor issues |
| Spare Parts Supply | Localized spare parts warehouses in the US (Texas) and Europe (Germany); 24-48h delivery for critical components |
